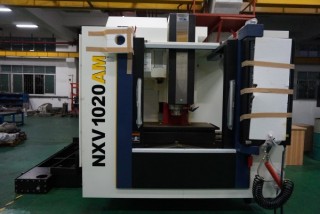

Model: NXV1020AM （High Precision）

Purchased date: Jan.16,2014

Spindle

Spindle Speed (opt.) rpm: 12,000 (15,000)

Max. Spindle Motor Power (opt.) kW: 18.5 (18.5)

Spindle Taper: BBT40

Travel

X-axis Travel mm: 1,020

Y-axis Travel mm: 520

Z-axis Travel mm: 540

Distance Between Spindle Nose & Table Top(opt.)mm;Distance Between Spindle Nose & Table Top(opt.)mm

Table:

Table Size mm: 1,120 x 520

No. T-slots x Size x Pitch mm: 5 x 18 x100

Max. Load on Table kg: 500

Feedrate

Rapid Feedrate (X/Y/Z) m/min.: 24/24/16

Cutting Feedrate mm/min.: 1~2,000

ATC

Tool Magazine Capacity (opt.) T: 24 (30/40)

Max. Tool Weight kg: 6

Max. Tool Dimensions (opt.) mm: ø90 x 300 (ø76 x 300)
